Our previous caching infrastructure relied on server-side queueing logic designed to anticipate user workflow and proactively cache studies. While this approach worked in many scenarios, it could sometimes create differences between what users saw in their worklist and what the system prioritized for caching, making it harder to consistently ensure the next case was immediately available. In some cases, users adopted manual workflows to better control caching behavior.
To improve predictability and align caching more closely with user intent, we implemented a split worklist architecture. The Universal Worklist represents all available work, while the new Individual Worklist represents the user’s active reading queue. The system now caches studies directly from the user’s Individual Worklist, providing a more transparent and user-driven caching experience.

Individual Worklist (IWL) — Personal Reading Queue

Reading Physician users have a dedicated Individual Worklist (IWL) that gives them full control over what gets pre-cached and when — eliminating unpredictable background caching and ensuring images are ready in a predictable, physician-directed order.

Building the Queue

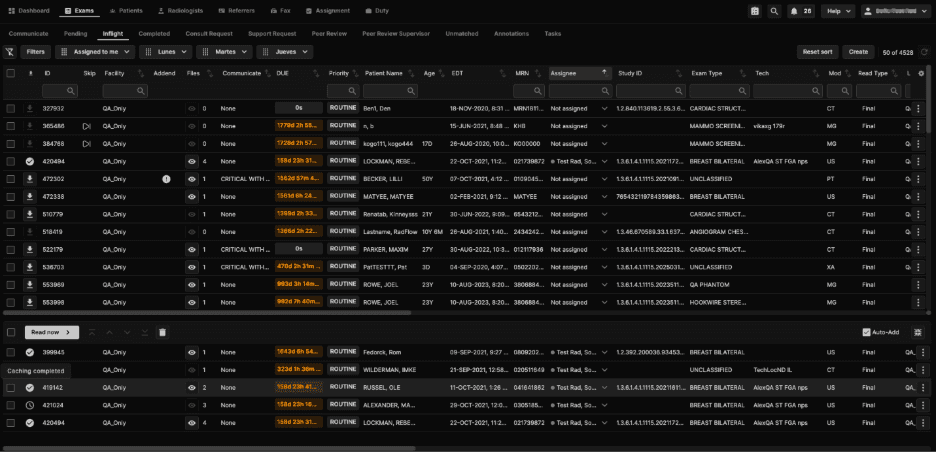

Reading physicians can add exams one at a time or in bulk from the Universal Worklist (Inflight tab) using the download arrow button. Added exams appear in a personal split worklist at the bottom of the screen. The system caches only exams explicitly present in the IWL, in the order they appear — so what's at the top is always ready first.

Reordering the Queue

Exams can be moved up or down individually, jumped to the top, or relocated as a selected group. Any reorder instantly updates caching priority and interrupts the current cache operation if needed — ensuring the most urgent cases are always loaded first.

Cache Status Icons

Cache status is visible both on the Inflight tab and within the IWL, so reading physicians always know the load state of each exam without opening it. Icons persist on the Universal Worklist so status is visible at all times, even for exams not yet moved to the IWL. Each exam group (primary exam plus relevant priors) is cached as a single unit, and the icon reflects the status of the entire group.

Auto-Add

When the Auto-Add toggle is enabled (top right of the IWL), the next eligible exam from the Universal Worklist will automatically stage itself for reading and caching when the current queue is exhausted — keeping the workflow moving without manual intervention.

Queue Persistence

The IWL is saved per user and workstation combination and persists across logout and login. If a case was read or reassigned to another reader while the physician was logged out, it will be automatically removed from the IWL upon their return. Completed exams are removed from the IWL immediately after being read.

Previously, the only way to surface AI findings from external systems via HL7 was to use a standard tag. There was no dedicated type for AI-sourced content — it was grouped together with regular tags and tasks under a single checkbox labeled "is task." There was also no way to control the display order of tags in the worklist, and no distinct visibility or filtering for AI-generated entries.

The Tags and Tasks framework has been extended to support a dedicated AI Finding tag type, giving facilities a structured way to surface algorithmic findings alongside standard workflow tags.

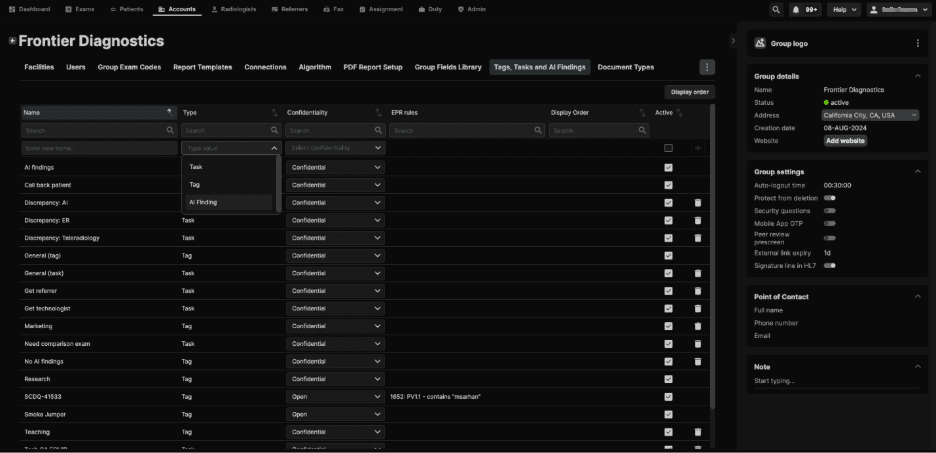

• The Tags and Tasks admin tool (renamed Tags, Tasks and AI Findings) now includes a Type dropdown with three options: Tag, Task, and AI Finding.

• AI Finding tags can only be applied to exams via Order Processing Rules; manual assignment by users is not permitted.

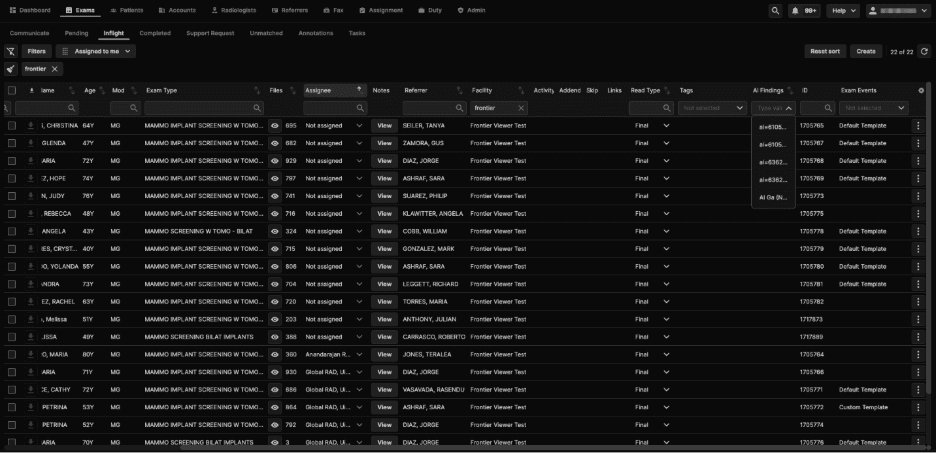

• A new AI Findings column appears to the right of the Tags column in the Exams worklist, displaying only AI Finding type entries; the Tags column continues to show Tag and Task types only.

• A configurable display order (drag-and-drop) controls how Tags, Tasks, and AI Findings are ranked within their respective worklist columns.

• AI Findings are surfaced in the Exam Details page (Tags, Tasks and AI Findings tab), in worklist filters and presets, in the Notes column, and in Duty Assignment criteria.

• Visibility is controlled by the updated open_tags_tasks_AIFindings ACL; when read permission is disabled, the AI Findings column and all related surfaces are hidden.

Prior to this improvement, when a Completed exam was moved to Support Request status, the option to request an addendum was not available while the exam remained in that status. In addition, users were not notified when additional images were received for a completed exam, making it more difficult to identify whether the finalized report should be reviewed or updated based on the newly available images.

Now when new images arrive for a completed exam, the platform now automatically flags the exam for review, so technicians or admins can determine whether an addendum is required.

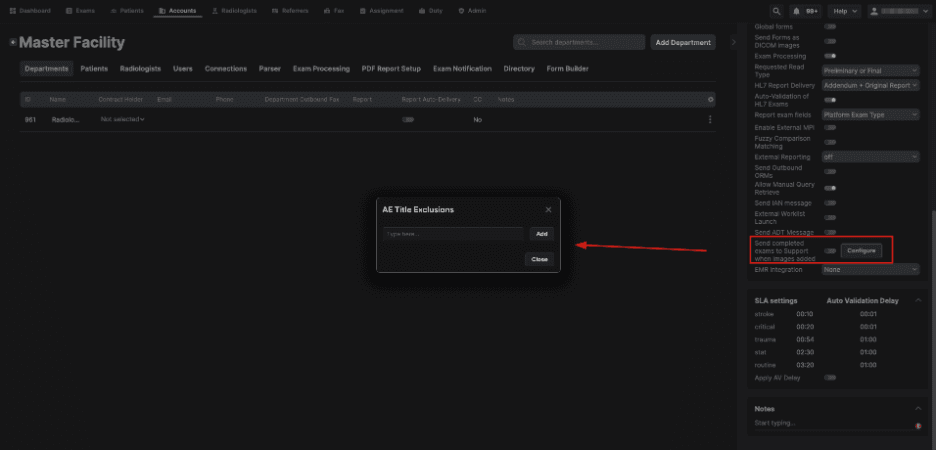

• A new facility-level setting, “Send completed exams to Support when images added”, controls whether this workflow is active. Administrators can configure a list of excluded AE Titles to prevent expected transfers (e.g., tech corrections) from generating unnecessary support requests.

• When triggered, the exam automatically moves from Completed to Support Request status with the category “Images Added”. An audit trail entry and Ops Note are generated by the system.

• From Support Request, users can initiate an addendum (moving the exam to Inflight) or resolve the request without an addendum (returning the exam to Completed).

• When a user is actively reading an exam at the time new images arrive, a pop-up notification prompts them to reload without disrupting their current session.

Referring physicians can now launch directly into the platform from their EMR — with no separate login required — enabling seamless image and report review within their existing clinical workflow. This initial release has been validated end-to-end with Epic via FHIR-based secure token launch.

'

Support for additional EMR platforms is technically feasible but will require separate integration work and can be explored based on customer needs.

How It Works

When a referring physician selects "View Images" (or equivalent) from a patient chart in the EMR, the platform launches directly to a modified exam details page and exam list scoped to the correct patient — consistent with the existing External Share experience. No additional platform login is required. From there, the physician can open images in the Viewer for the selected exam and any relevant prior exams, also without additional authentication.

Previously, there was only the ability to save annotations but not the ability to save presentation states in the viewer. Any changes made during a session — including annotations, zoom, pan, and window adjustments — were lost when the exam was closed.

Saving of annotations and image edits (zoom, pan, window width, level) in the Viewer is now governed by role-based permissions and a configurable per-user preference, giving users precise control over what gets persisted and when.

Permission-Based Access

A new permission — "Save GSPS/Annotations on System Default Viewer" — controls which roles can create, update, and delete annotations. Users without this permission can still create and work with annotations during an active session, but nothing will be saved when the exam is closed.

User Preference — Save Image Edits

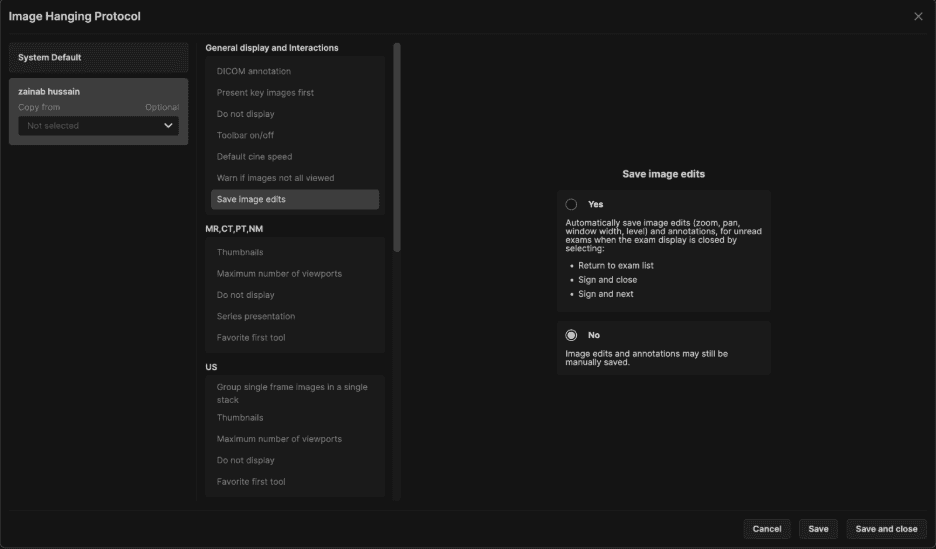

Users such as Reading physicians will find a new "Save Image Edits" setting in the Hanging Protocol window under General Display and Interactions, with two options:

• Yes (Auto-Save) — Image edits and annotations are automatically saved for unsigned exams when the exam display is closed via Return to Exam List, Sign and Close, or Sign and Next.

• No (Manual Save) — Image edits and annotations are not saved automatically at sign time. A "Save Current Presentation State" button remains available in the Viewer, allowing manual saves at any point during the session without closing the exam.

How Saving Behaves During In-Session Navigation

Regardless of the Save Image Edits preference, annotations are always auto-saved for unsigned exams whenever the reading physician navigates within the app — such as skipping to another exam, returning to the worklist, or switching exams. The preference only controls what happens at the point of signing.

Viewing and Managing Presentation States

Saved presentation states are accessible from the Viewer under Presentation States. The panel displays all saved states for the exam, each showing the date/time saved and the reading physician who saved it. A "Save current presentation state" button is also available directly in this panel. When Auto-Save is enabled, a note is displayed confirming that the presentation state will be saved on return to exam list, sign and next, skip, or sign and close.

Audit Trail

All annotation create, update, and delete actions are logged with the username, date, and time, supporting compliance and accountability requirements.

Studies can now be automatically archived to one or more configured destinations as part of the standard reading workflow, eliminating the need for manual archiving. A redesigned Gateway Management framework gives administrators granular control over archiving behavior and ensures IOCM messages are generated only under confirmed archive conditions.

Gateway Management

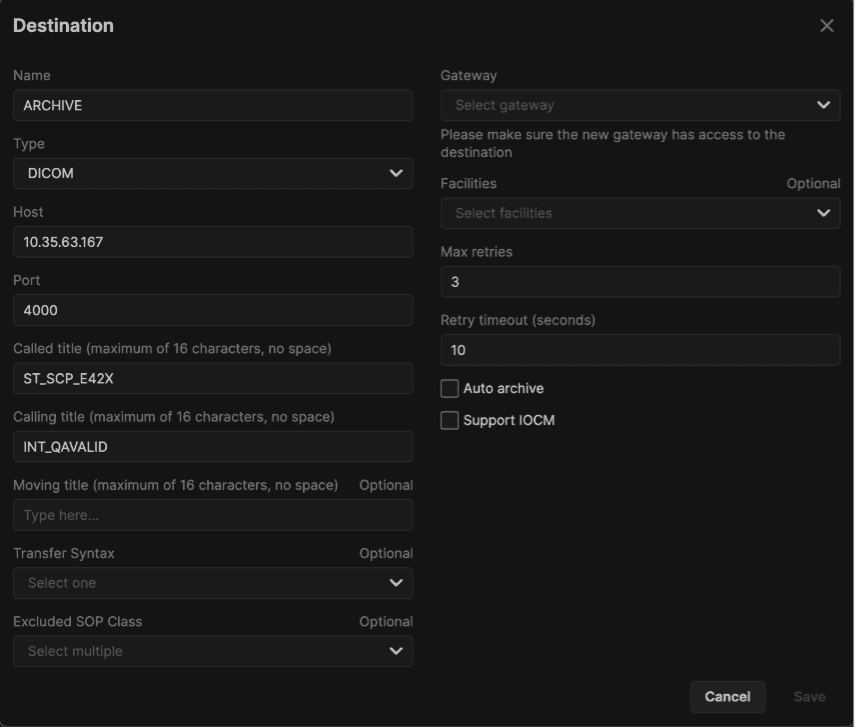

A new Gateway Management section under Facility Group settings allows administrators to create and manage named Gateway instances, each provisioned with a dedicated Pub/Sub channel, service account, and scoped facility associations. Destinations have been extended with gateway association, auto-archive trigger status, IOCM eligibility, retry configuration, and facility scoping. IOCM messages are generated only after a confirmed successful archive, ensuring downstream archive systems receive change notifications only when the study is known to be present at the destination.

Automatic Archive

Each DICOM destination can be configured with a trigger status — Pending, Inflight, or Completed — and an archive job is automatically created the first time an exam reaches that status. A single exam can be archived to multiple destinations simultaneously, each with its own independently configured trigger. Archive jobs are routed through a dedicated Gateway Pub/Sub channel per destination; the Gateway performs a C-FIND check before pushing to transmit only instances not already present at the destination. Each destination tracks its own archive state (Archived, Failed, or Unknown) per exam, ensuring that subsequent changes to an already-archived exam route to IOCM rather than creating duplicate archive jobs.

Jobs Tab

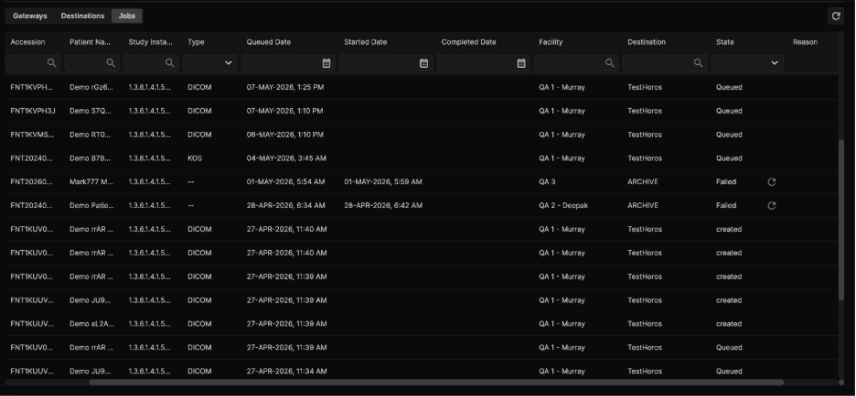

A new Jobs sub-tab in Gateway Management displays a full history of archive, DICOM, and IOCM jobs, including timestamps, current status, and failure reason where applicable. Failed jobs can be retried directly from the tab. The job list is filterable by job type and date, with a clear/reset control on date filters.
